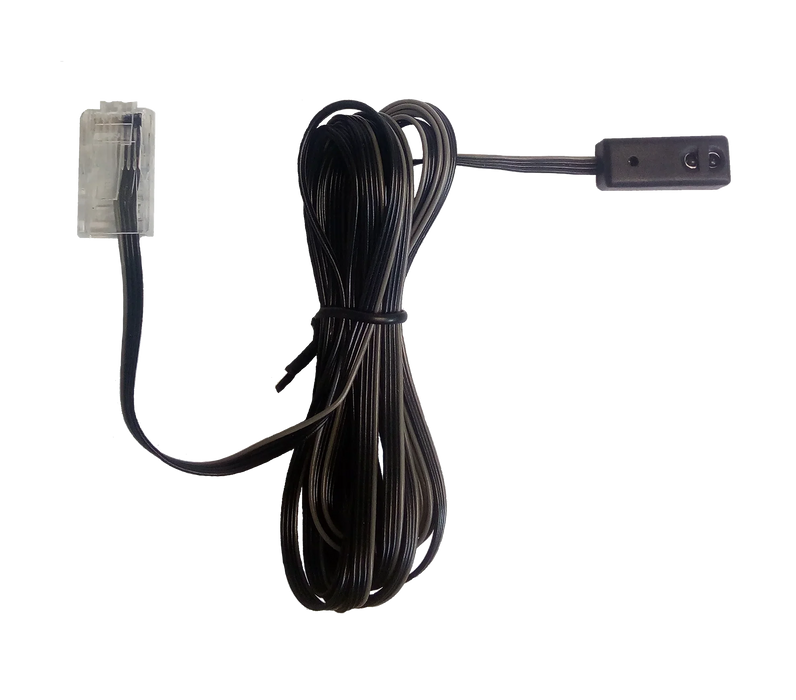

AXIUM Single IR Receiver. Plasma, LED, LCD, Sky/MySky Box Friendly
AXIUM Single IR Receiver. Plasma, LED, LCD, Sky/MySky Box Friendly
Features:
Excellent IR receiver range: 8m ± 45° (Depends on ambient light levels and remote control strength)
Receives/processes very short pulse burst codes systems as used by some set-top box receivers
Wide input voltage range: 8V~16V DC 50mA
Amplifier ON indicator and IR reception “flashback” indicator. (Both can be defeated)
Default modulation frequency: 38KHz ± 1%
Multiple AXIRFX3 receivers may be connected in parallel
High Strength Acrylic sticky mounts are used to attach the IRFX3
The receiver has excellent off-axis reception, giving >50% range when 45° off-axis
Flat 4 core 28AWG 2m black lead
Ingenious Rear / Bottom cable exit
Enhanced EMI immunity with Data Stream Filtering
Rejects IR disturbances that can slow down or cause intermittent problems on IR systems
Fitted with RJ45 for easy connection via wall plates or direct to EX4-N
Supplied with 3 shell colours:
Black
White
Silver
Dimensions:
Width 9.0mm
Length 22.0mm
Height 6.5mm
Approvals: C-Tick CISPR22, FCC
