Dometic Cold Machine VX 100-O Evaporating Unit
Dometic Cold Machine VX 100-O Evaporating Unit
This listing is for:
1 x Dometic Cold Machine VX 100-O Evaporating Unit
O-box evaporator for volumes up to 100L

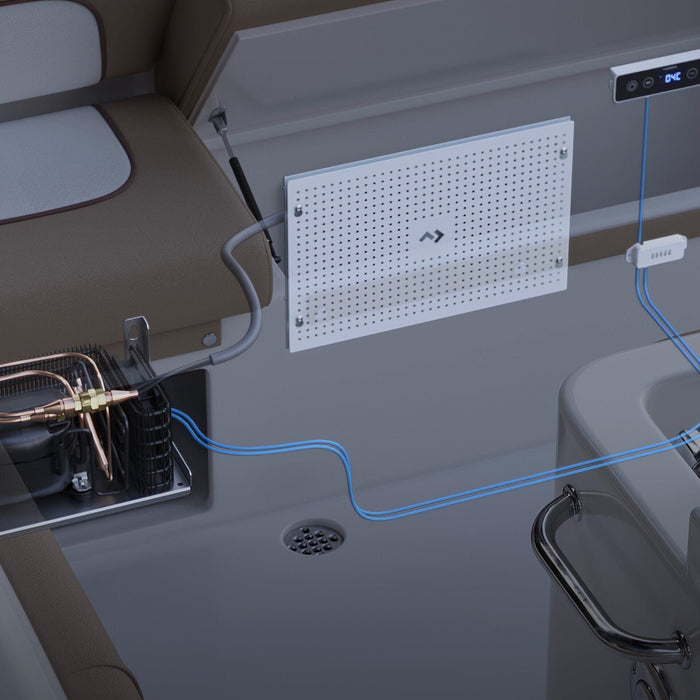

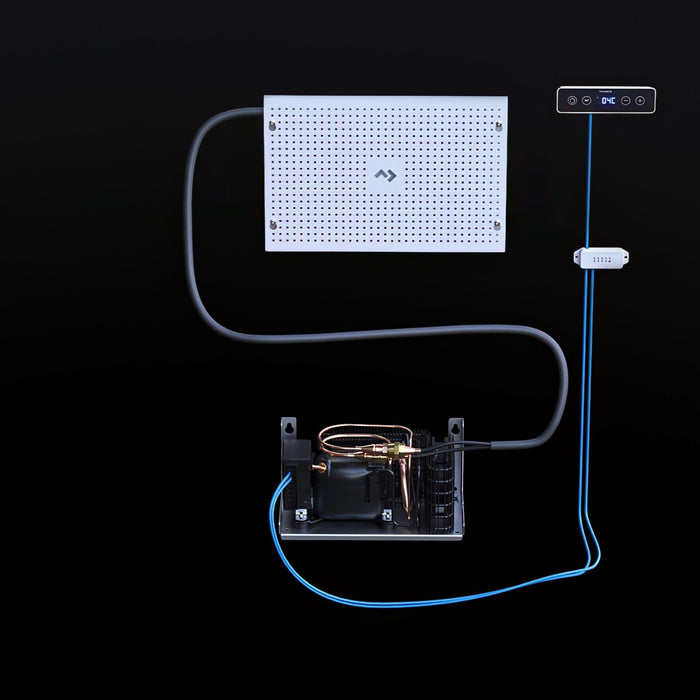

Designed for flexibility and performance, the Dometic VX series evaporators bring precise, even cooling to any custom box configuration. Available in flat, O-box, and fan-cooled formats, each plate integrates cleanly into your design and connects easily to CX condensing units for a perfectly balanced refrigeration system.
100L O-box freezer zone
271×214×124mm box
NTC digital control ready
Secured freezer flap door
2.2m refrigerant pipe
Integrated freezer box
Key Features:
O-box configuration integrates freezer compartment within compact under 100 L installations

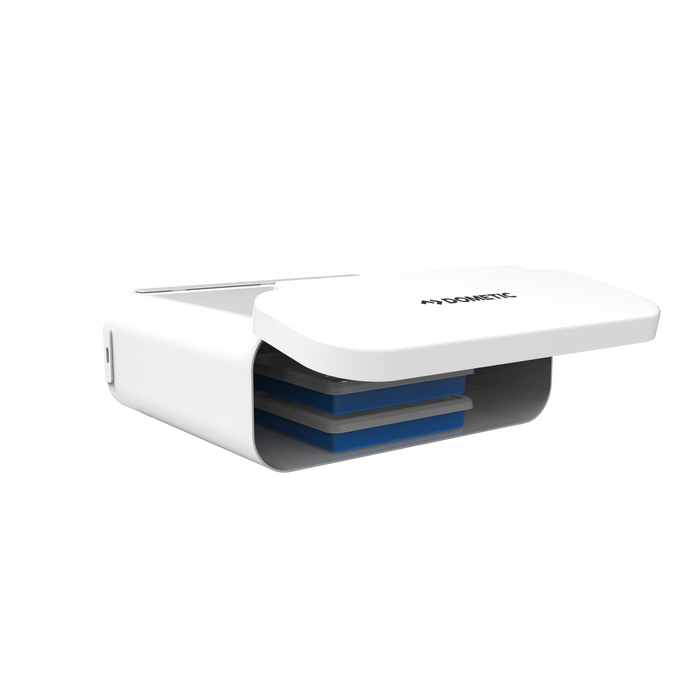

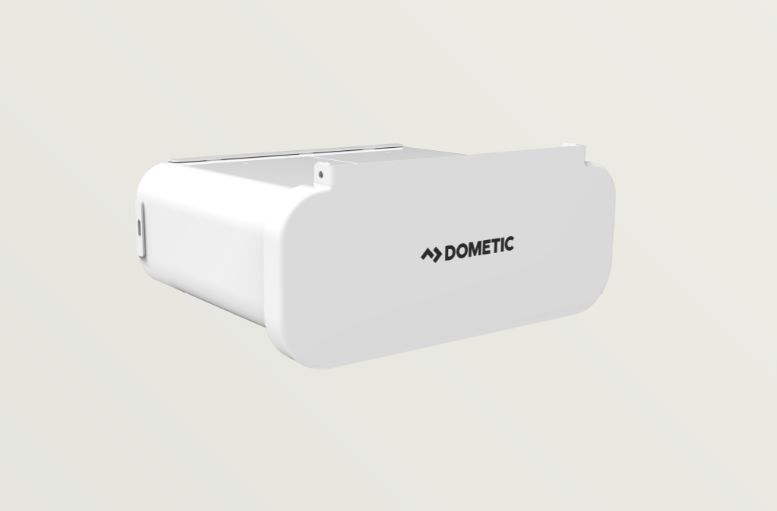

Box-style evaporator (271 × 214 × 124 mm) featuring a real 4,5L freezer ideal for ice-cubes
Secured flap door for optimal freezing temperature inside the box
Built-in freezer volume option enhances versatility in smaller galleys
2.2 m refrigerant pipe length allows flexible compressor positioning

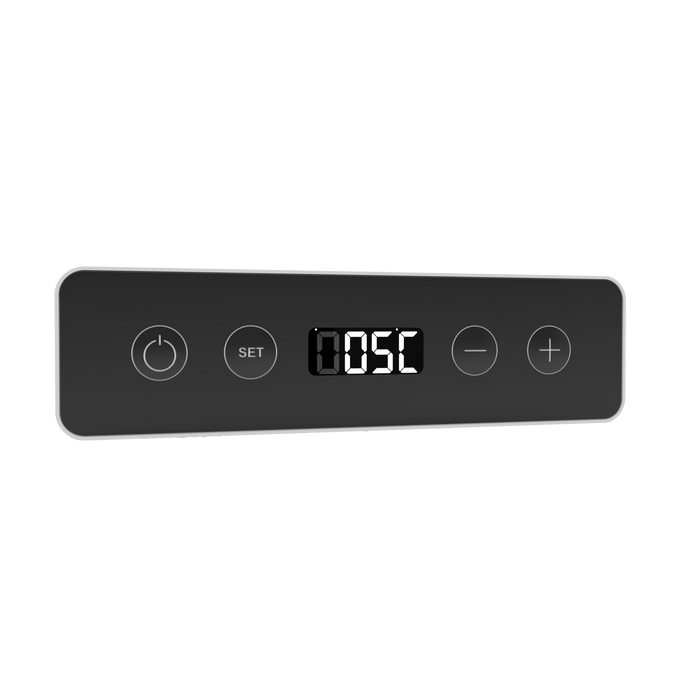

Precision digital control compatibility with NTC temperature sensor for stable onboard cooling performance
Dimensions:
Dimensions product depth, [mm] 124
Dimensions product height, [mm] 214
Dimensions product width, [mm] 271
What's Included:
1 x coldmachine
1 x manual
