Dometic Cold Machine VX 400-O Evaporating Unit
Dometic Cold Machine VX 400-O Evaporating Unit
This listing is for:
1 x Dometic Cold Machine VX 400-O Evaporating Unit
O-box evaporator for volumes up to 400L

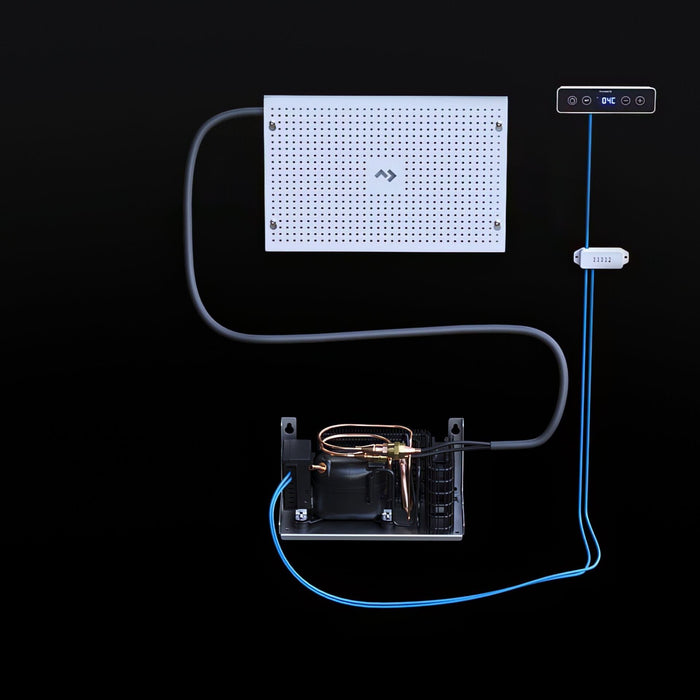

Designed for flexibility and performance, the Dometic VX series evaporators bring precise, even cooling to any custom box configuration. Available in flat, O-box, and fan-cooled formats, each plate integrates cleanly into your design and connects easily to CX condensing units for a perfectly balanced refrigeration system.
400L O-box freezer zone
397×304×187mm box
NTC digital control ready
Secured freezer flap door
2.2m refrigerant pipe
Fridge/freezer systems
Key Features:

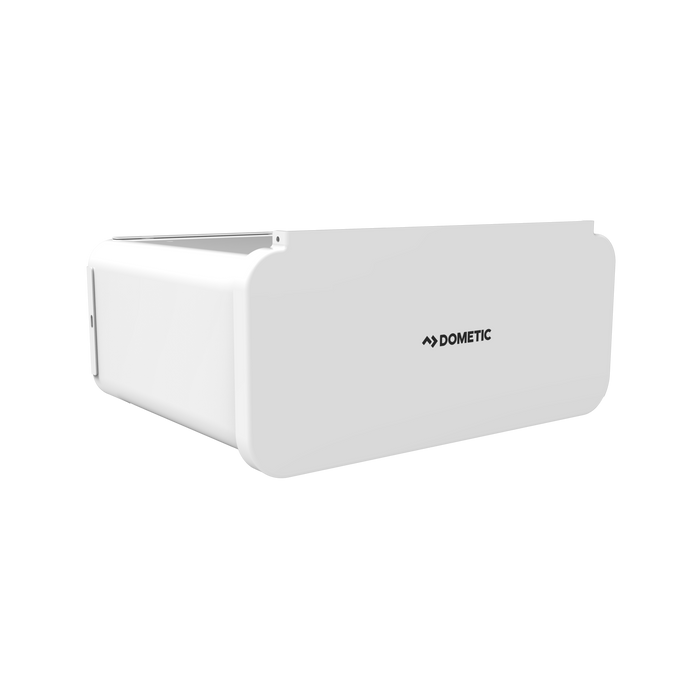

Large O-box evaporator with integrated 17 L freezer zone for up to 400 L setups
Box dimensions (397 × 304 × 187 mm) support a clear freezer separation with 17 L capacity

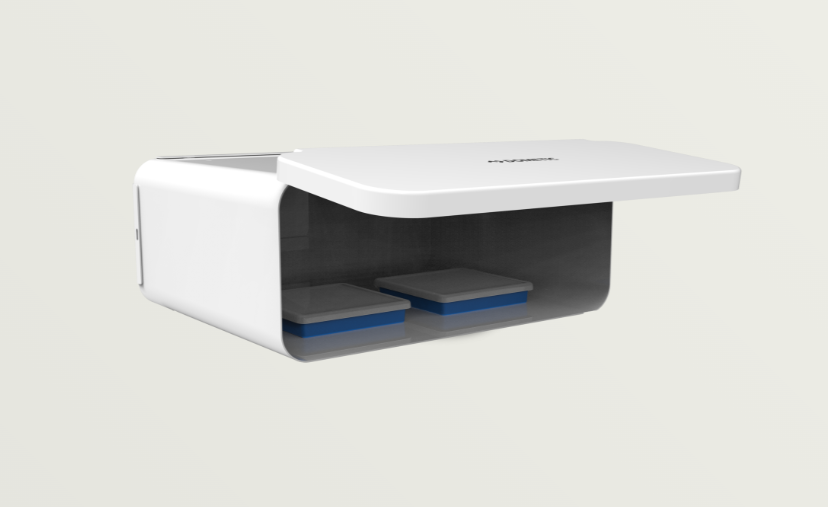

Secured flap door for optimal freezing temperature inside the box
Suitable for mixed fridge/freezer systems in larger compartments
2.2 m refrigerant pipe length allows flexible compressor positioning

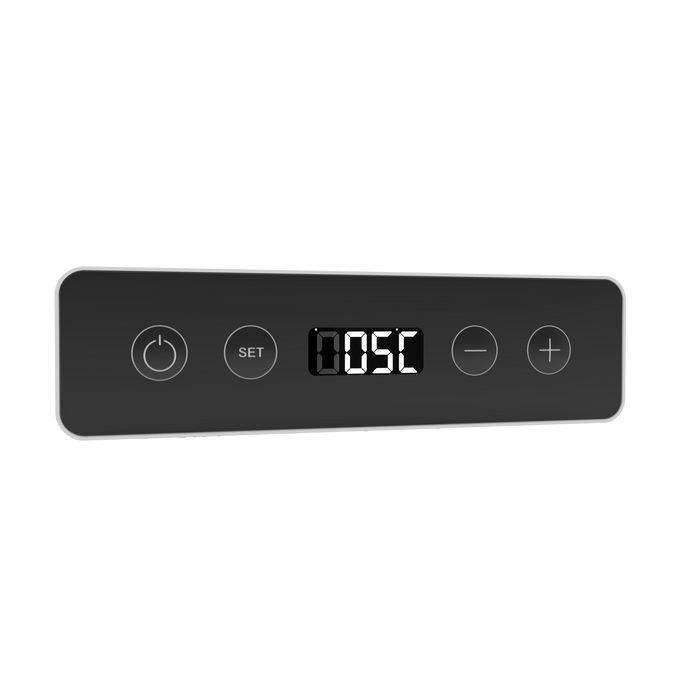

Precision digital control compatibility with NTC temperature sensor for stable onboard cooling performance
Dimensions:
Dimensions product depth, [mm] 187
Dimensions product height, [mm] 304
Dimensions product width, [mm] 397
What's Included:
1 x coldmachine
1 x manual
